Waldmann - Lavigo VTL Free-Standing Luminaire(Automatic induction)

• Performance level for highest lighting demands
• Optimised ratio of direct to indirect light for standard-compliant, uniform illumination of large light calculation surfaces
• Direct light component with edge light and light-guide technology for homogenous light exit
• Easy-to-reach, multifunctional operating element
• Asymmetrical beam (variants)
• Human centric lighting VTL for office workplaces
• Retrofittable with TALK module for luminaires with sensor

Technical Parameters

• Technology: Infrared sensor (PIR)
• Connected load :220-240 V; AC; 50/60 HZ
• Connected load: approx. 100 W
• Luminous flux :approx. 14250 lm
• Luminous efficiency :approx. 142 lm/W
• Light distribution :Direct/indirect
• Direct light ratio: approx. 12 per cent
• Glare-free technology: Prism aperture
• UGR rating :(EN 12464-1) European standard ≤ 16; Chinese standard ≤ 10
• Equipped with: LEDs
• Colour temperature :approx. 4000 K, cool white
• Colour rendering (Ra) :≥80
• Colour: White
• Weight :19,7kg
• Power cord :Built-in plug
• Certification marks: VDE - ENEC
• Protection class: I

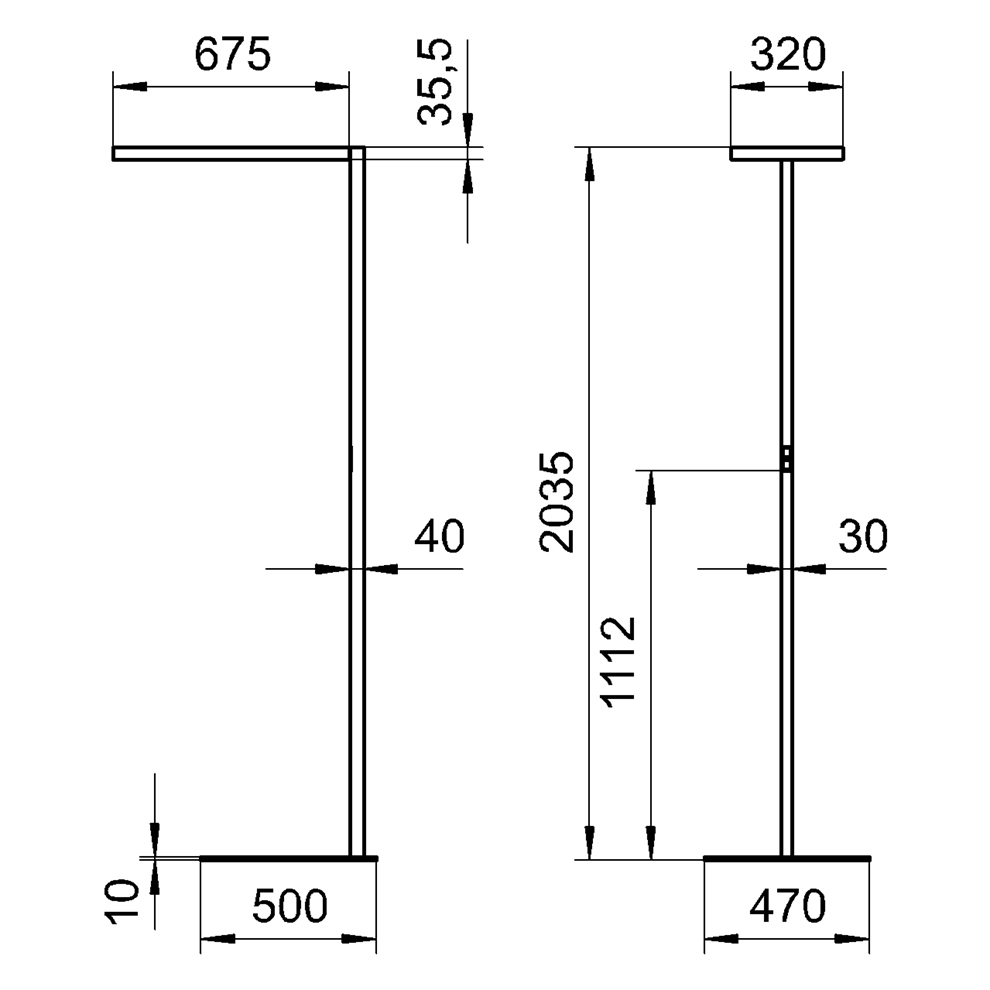

Dimensional sketch

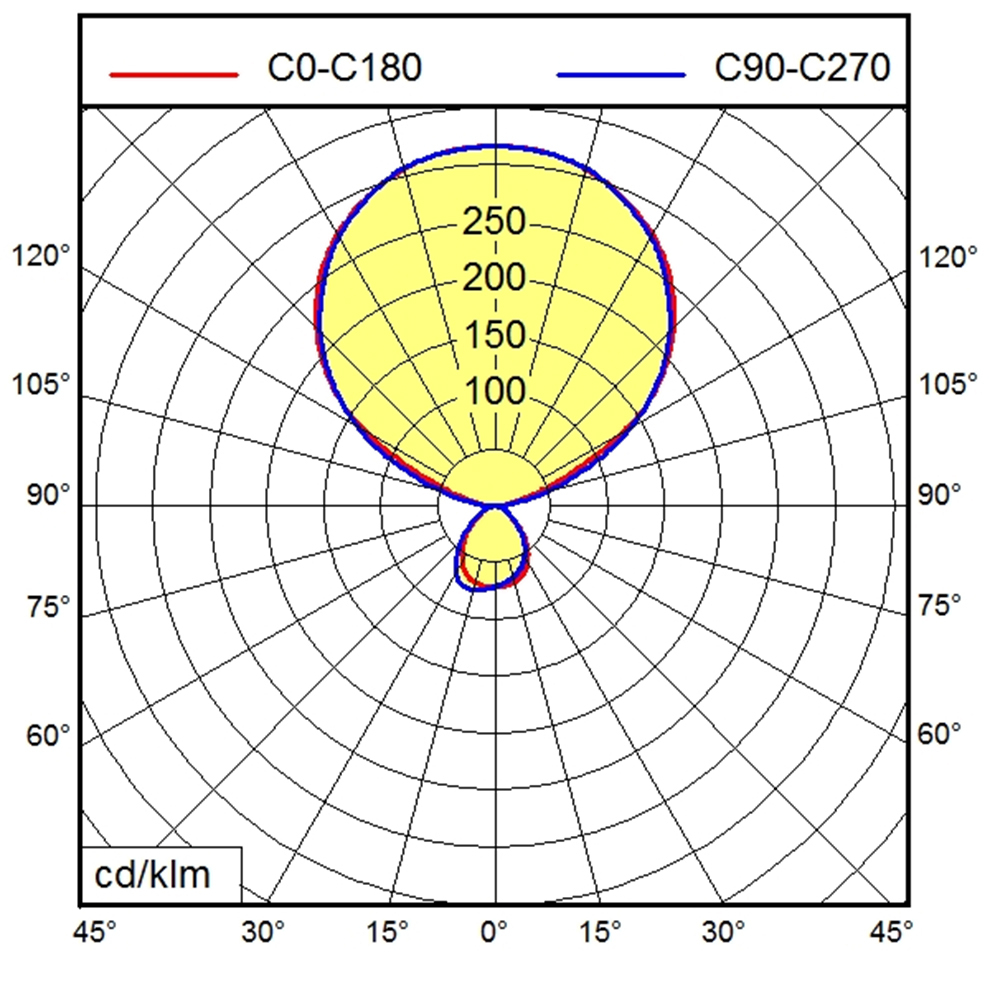

Lighting technology ：Optical data head
